The linear motion electric actuator can either be mounted directly on the driven device or mounted together with the gearbox.

1、Working environment and main performance parameters

Power supply：AC380±10％V 50±10％HZ

                         Custom 220V～660V，60HZ

Protection grade：IP67(1m underwater 30minutes)

Custom IP68(6m underwater 72hours)

Low temperature：-20～+60℃（Special -40～+70℃）；

Ambient humidity：≤90%（+25℃）；

Explosion-proof marks：Exd I、ExdibⅡBT4 and  ExdibⅡCT4；

Working system：S2-15min short-time working system for IS on- off type

                             S4-25% intermittent working system for IM control type

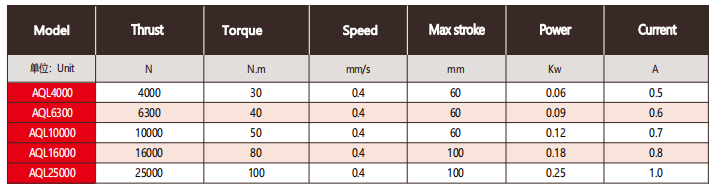

2、Actuators technical parameters

3、Structure Size
