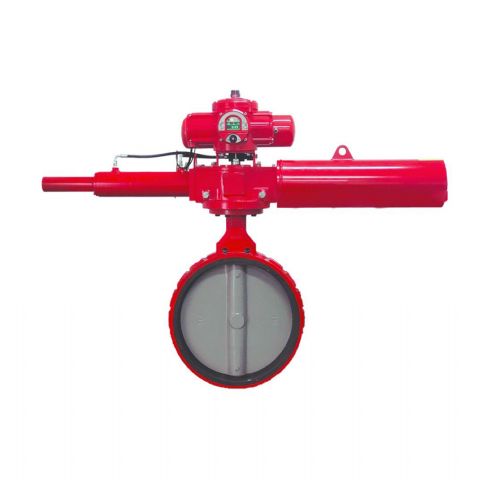

ET Series Intelligent electro-hydraulic linkage actuator
Mon, 28 Dec 2020 | View : 596
The intelligent electro-hydraulic linkage actuator integrates the variable frequency drive of the DC brushless motor and all the functional requirements of the intelligent electro-hydraulic actuator. With the brushless DC motor, it is suitable for various types of electro-hydraulic actuators. As the control core of the electro-hydraulic actuator, it can be extremelyGreatly improve the performance and grade of electro-hydraulic actuators, and are widely used in the upgrading and transformation of various actuators.

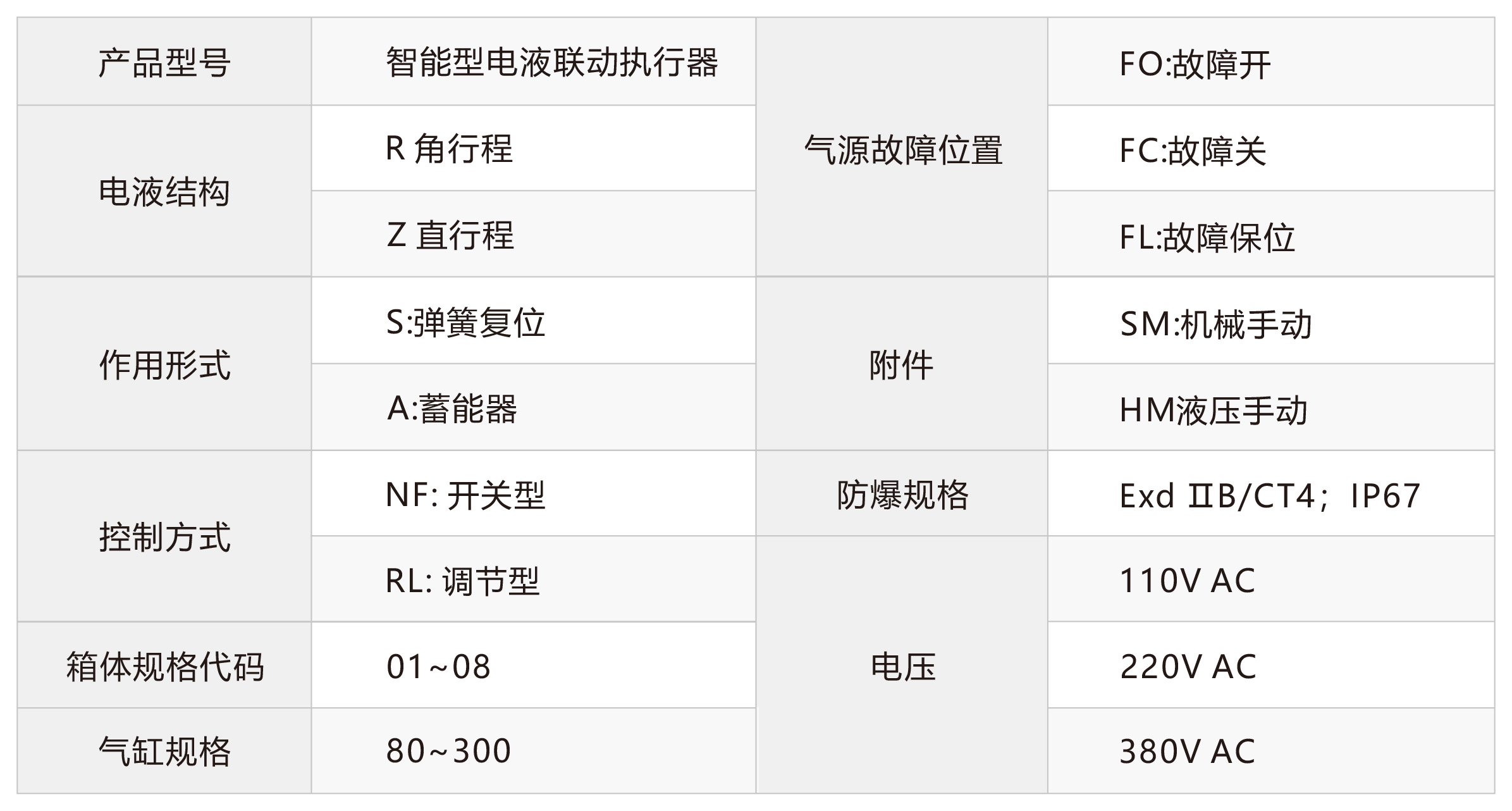

1、Model Specification

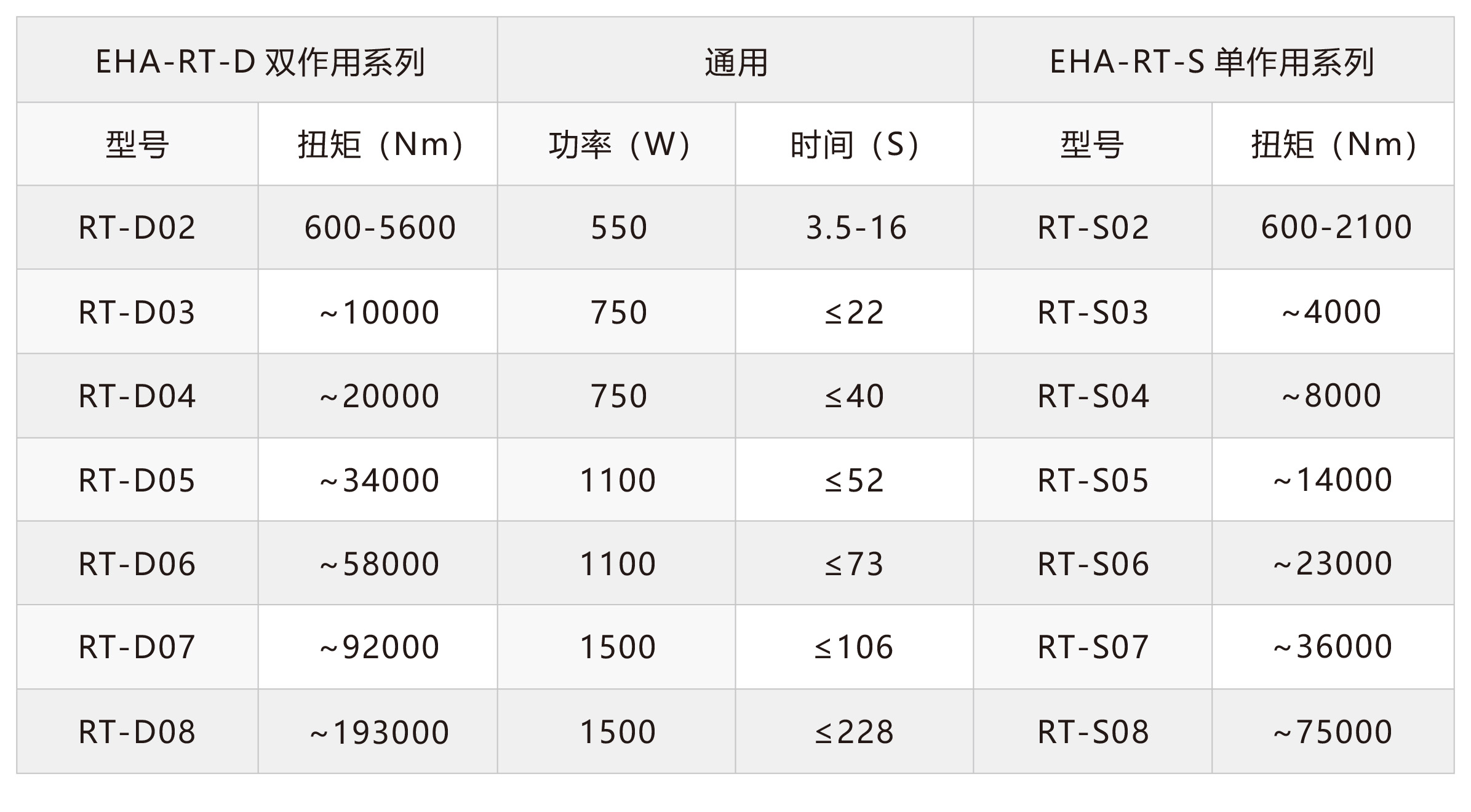

2、Lectotype Table
Note:
1. The time in the table is the time in the hydraulic direction.The spring direction time is 0.5~10 seconds, which can be set according to the special requirements of customers. 2. A wide range of torque options can be set according to customer specific requirements. 3. Local control of the panel buttons and non-intrusive Bluetooth control make the operation more convenient. 4. 4-20mA or 1-5V analog quantity, receiving Fieldbus Modbus and Hart bus for remote control. 5. Explosion-proof grade ExdIIBT4, waterproof grade IP67. 6. Operating environment, normal temperature type -20~70℃, low temperature type -40~60℃. 7. Power failure safety options: FO: fault on FC: fault off FL: fault safe position
