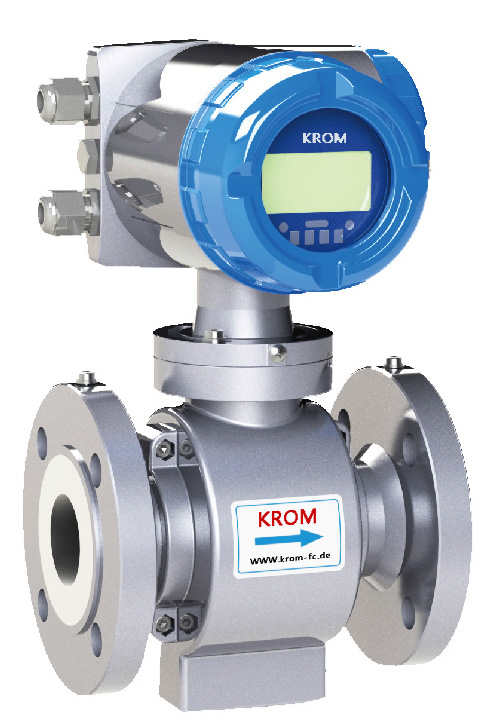

MAG 1000 Standard type

Design for most application, flange connection type, high performance.

Digmeter:DN10-DN2200mm

Lining:FEP(DN10-DN500),Chloroprene Rubber,PU(DN10-DN500)

Accuracy:0.5% of Reading

Calibration flow range: 0.5-10m/s;

Measured flow range:0.2-10m/s

Flow sensor housing material:Casr aluminum(DN10-DN100)Carbon steel(DN125-DN2200)

Temperature class:85-240VAC;20-36VDC;Lithium battery
